Gold Testing Machine

More Variations

Gold Testing Machine

ScopeX PG Family

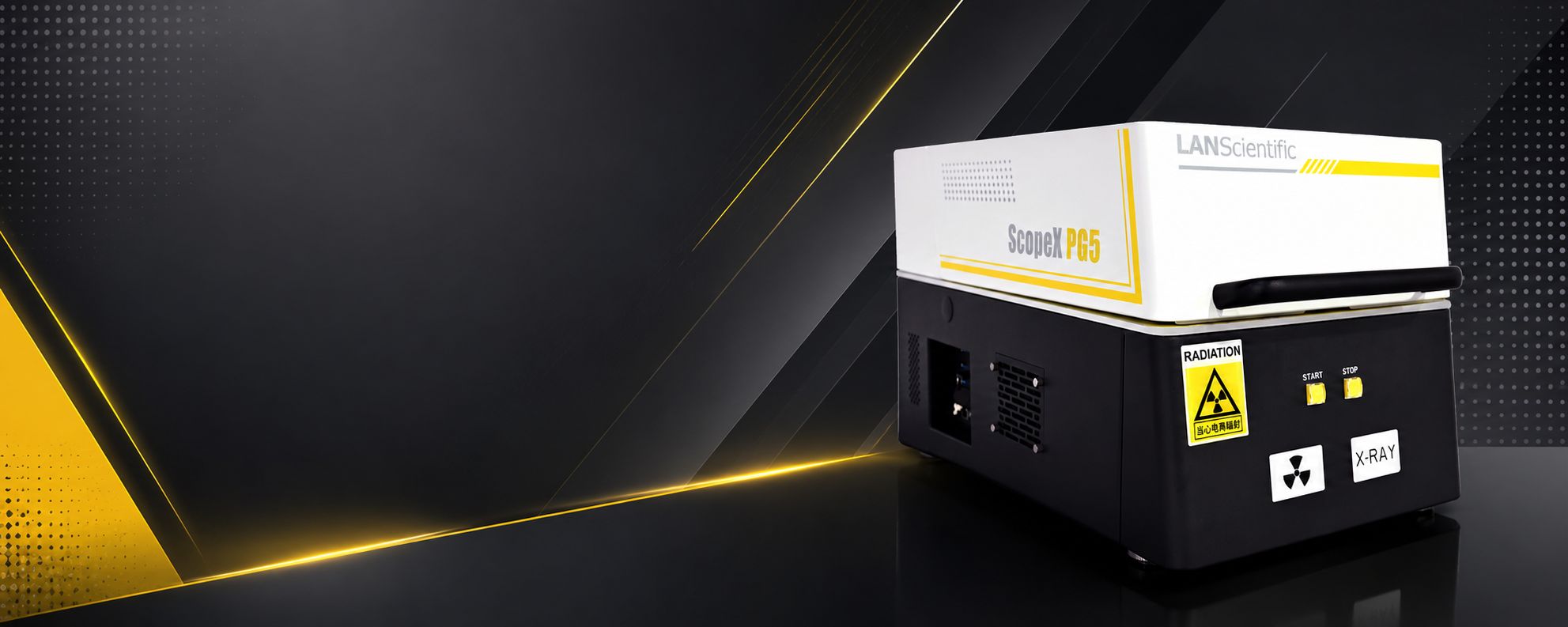

ScopeX PG5 Gold Analyzer for High-end Recycling

Product Parameters:

Type
Benchtop
Weight
40kg
Size
350×580×360mm（W×D×H）
Detection Range
Al-U
Language
Multi languages including Chinese, English
Detector
Si-PIN Detector
Optical structure
Vertical
Tube Window
Glass Window
Collimator
Equipped with 1.5mm collimator.
Accuracy
±0.03%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz

Specifications

Tube Window
Glass Window
Collimator
Equipped with 1.5mm collimator.
Accuracy
±0.02%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
100~240VAC
ScopeX PG Family

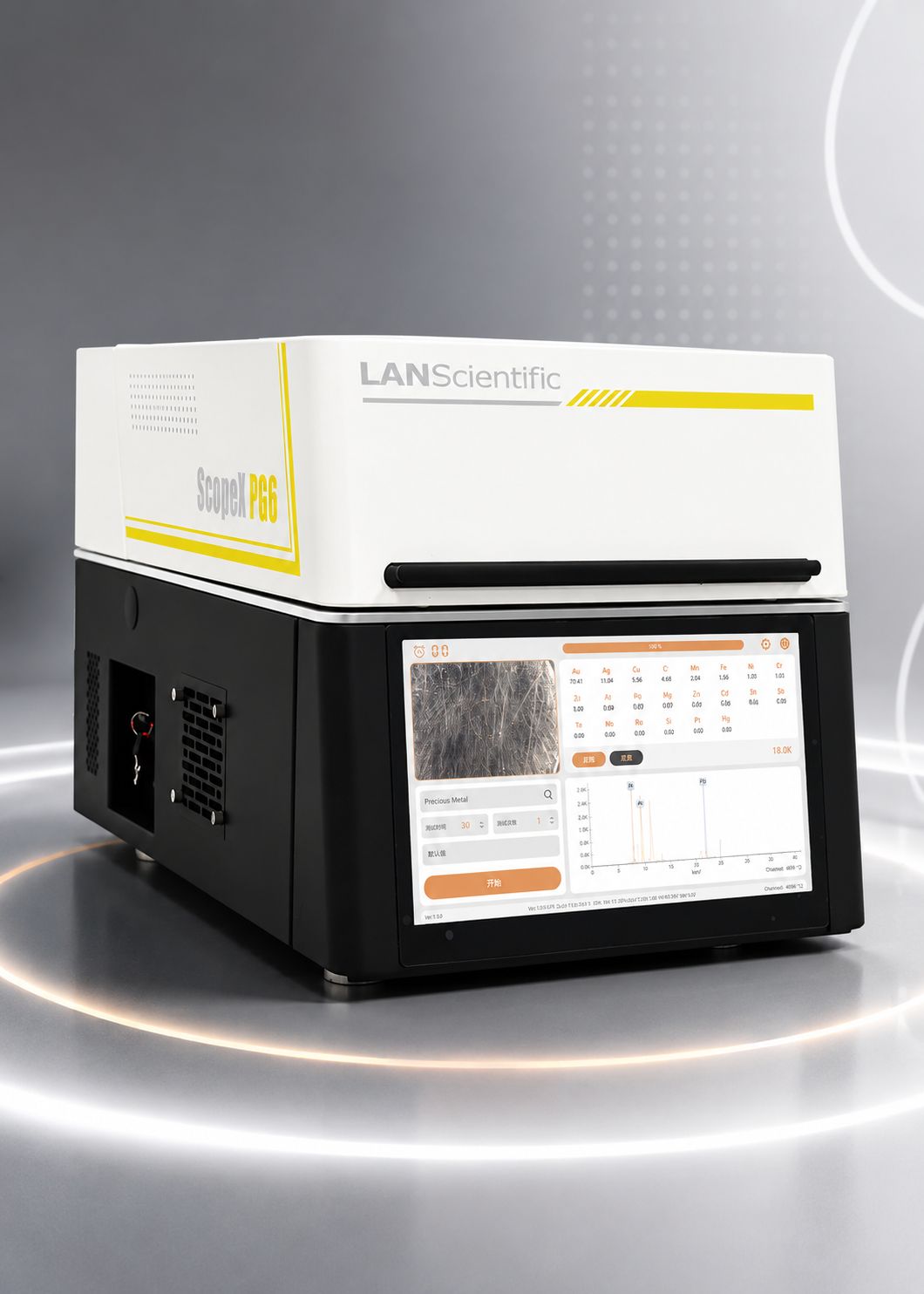

ScopeX PG6 Gold analyzer (all-in-one)

Product Parameters:

Type
Benchtop
Weight
38.6kg
Size
350×580×360mm（W×D×H）
Detection Range
Al-U
Language
Multi languages including Chinese, English
Detector
Si-PIN detector
Optical structure
Vertical
Tube Window
Glass Window
Collimator
Equipped with 2.5mm collimator.
Accuracy
±0.03%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz

Specifications

Tube Window
Glass Window
Collimator
Equipped with 2.5mm collimator.
Accuracy
±0.03%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz
ScopeX PG Family

ScopeX PG7 Precious Metal Analyzer for Quality Inspection Agency/Factory

Product Parameters:

Type
Benchtop
Weight
41kg
Size
350mm×580mm×360mm（W×D×H）
Detection Range
Al-U
Language
Multi languages including Chinese, English
Detector
SDD detector
Optical structure
Vertical
Tube Window
Glass Window
Collimator
Equipped with 1.5mm collimator.
Accuracy
±0.01%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz

Specifications

Tube Window
Glass Window
Collimator
Equipped with 1.5mm collimator.
Accuracy
±0.01%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz
ScopeX PG Family

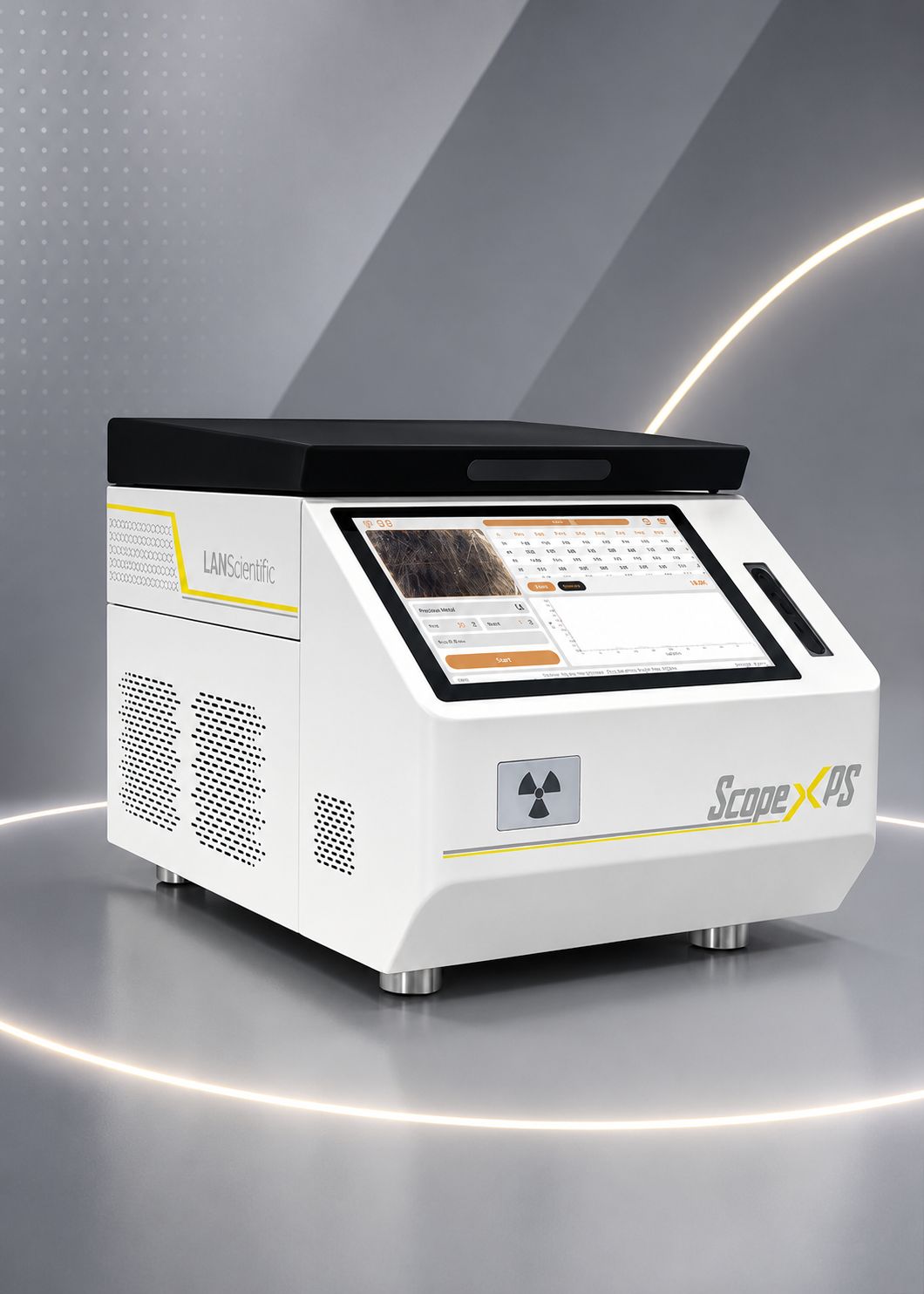

ScopeX PS6 Gold analyzer (all-in-one)

Product Parameters:

Weight
34.5kg
Size
362mm×524mm×343mm（L×W×H）
Detection Range
Al-U
Language
Multi languages including Chinese, English
Detector
Si-PIN detector
Optical structure
Vertical
Tube Window
Glass Window
Collimator
Equipped with 2.0mm collimator.
Accuracy
±0.03%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz

Specifications

Tube Window
Glass Window
Collimator
Equipped with 2.0mm collimator.
Accuracy
±0.03%
Data Printing
Bluetooth Printer
Camera
5MP HD CMOS Camera
Power Supply
Supports 100-240VAC, 50/60Hz
More Variations

Pureray Instrument

Precious Metal Analyzer

Pureray Gold Lite Testing Machine

Product Parameters:

Detector
USA AMPTEK Customized Si-PIN
Embedded Computer
Intel i3 10-Core
HV Power Supply
50KV / 1mA Digital HV
X-ray Tube
50KV / 1mA
Collimator
Φ2.0mm
Input Voltage
AC100–240V, 50Hz
Package Size
625 × 560 × 480mm
Machine Size
460 × 522 × 368mm
Test Chamber Size
374 × 344 × 155mm
Rated Power
150W
Gross Weight
57KG
Net Weight
42KG
Noise
<65dB

Specifications

Package Size
625 × 560 × 480mm
Machine Size
460 × 522 × 368mm
Test Chamber Size
374 × 344 × 155mm
Rated Power
150W
Gross Weight
57KG
Net Weight
42KG
Noise
65dB
Precious Metal Analyzer

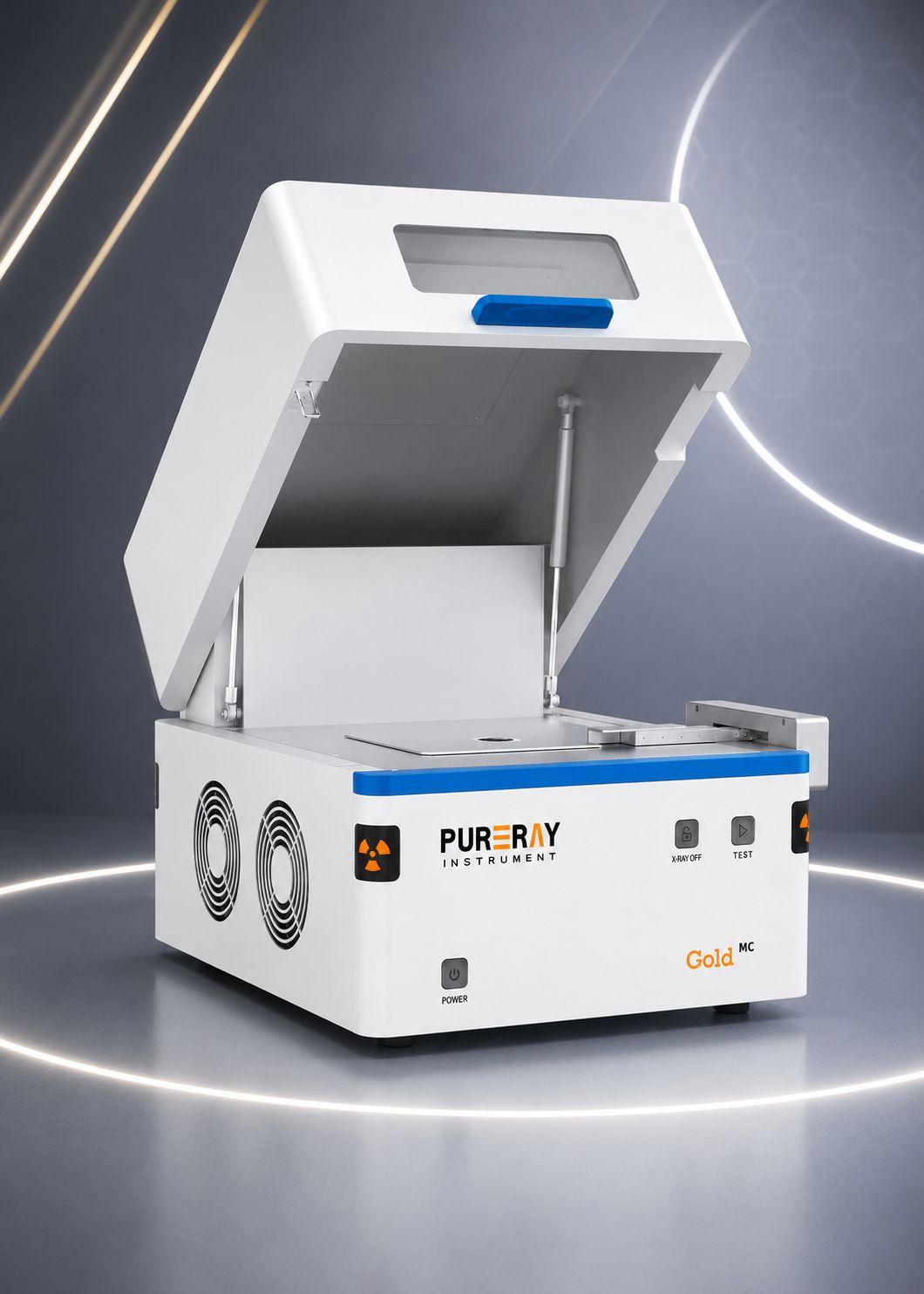

Gold MC X-Ray Fluorescence (XRF) Analyzer

Product Parameters:

Detector
USA AMPTEK customized Si-PIN
Embedded Computer
Intel i3 10-core
HV Power Supply
50KV/1mA digital HV
X-ray Tube
50KV/1mA
Collimator
Φ0.8mm/Φ2.0mm
Input Voltage
AC100～240V，50Hz
Package Size
625*560*480mm
Machine Size
460*522*368mm
Test Chamber Size
374*344*155mm
Rated Power
150W
Gross Weight
57KG
Net Weight
42KG
Noise
<65dB

Specifications

Package Size
625*560*480mm
Machine Size
460*522*368mm
Test Chamber Size
374*344*155mm
Rated Power
150W
Gross Weight
57KG
Net Weight
42KG
Noise
<65dB
Precious Metal Analyzer

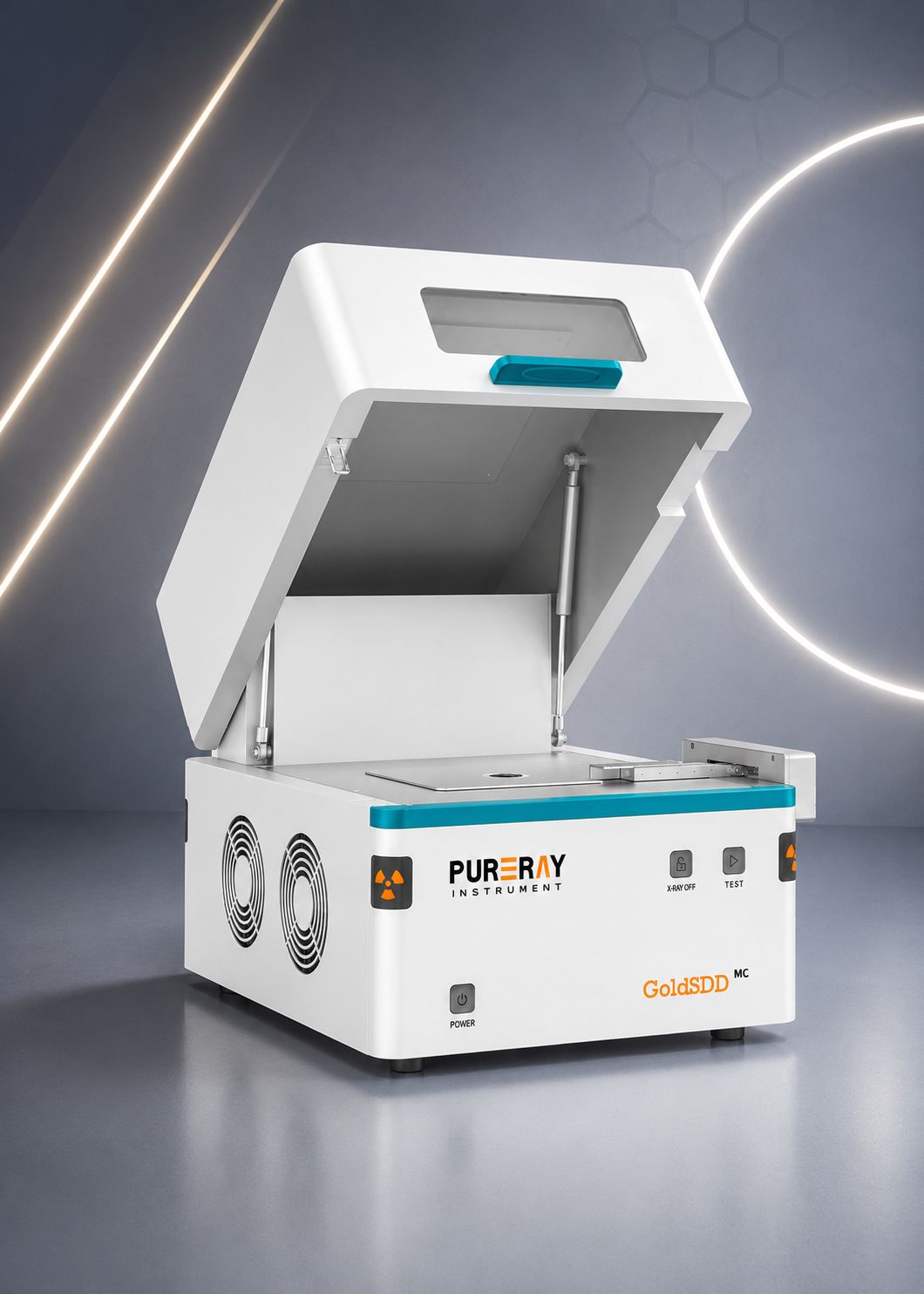

GoldSDDMC X-Ray Fluorescence (HOT) Analyzer

Product Parameters:

Detector
USA AMPTEK customized Fast-SDD
Embedded Computer
Intel i5 12-core
HV Power Supply
50KV/1mA digital HV
X-ray Tube
50KV/1mA
Collimator
Φ0.5mm/Φ1.5mm
Input Voltage
AC100～240V，50Hz
Package Size
625*560*480mm
Machine Size
460*522*368mm
Test Chamber Size
374*344*155mm
Rated Power
150W
Gross Weight
57KG
Net Weight
42KG
Noise
<65dB

Specifications

Package Size
625*560*480mm
Machine Size
460*522*368mm
Test Chamber Size
374*344*155mm
Rated Power
150W
Gross Weight
57KG
Net Weight
42KG
Noise
<65dB
